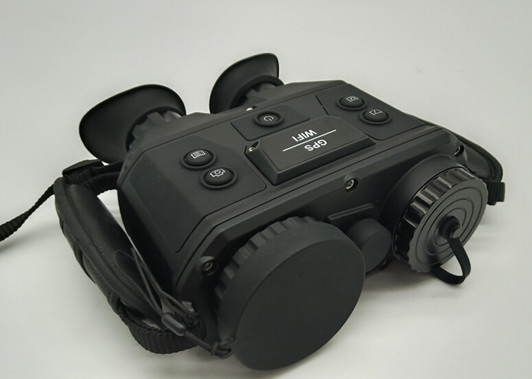

Handheld Adjustable Military Thermal Binoculars Thermal Scope Binoculars IP66

Details

Detector type

Uncooled vanadium oxide or polysilicon

Detector specifications

640×512

Response band

8~14μmm

Pixel size

17μmm

Frame frequency

25Hz/50Hz

Reticle: Eight polarities

white hot/black hot

Pseudo-color mode

Eight display modes(city, jungle, desert, ocean, snow, fusion thermal image, black and white thermal image, visible light)

Choose the appropriate pseudo-color mode according to the actual scene

Hotspot tracking

support

Boundary detection

support

Fast ranging

support

Electronic magnification

1, 2, 4 times magnification

Lens focal length

50mm f=1.2

Field of view

7.15°×5.35°

Focus adjustment method

Manual

Horizontal viewing angle

4.63°×3.64°

Aperture

F0.8

Resolution

1920*1080

Maximum frame rate

25 frames/second (1920x1080)

White balance

automatic black and white

Illumination

0.0001lux

Fusion black and white

the observation screen will display a black and white image after the fusion of thermal imaging and visible light

Video format

MP4

Image resolution

1024×576 (D1 )

Image storage

JPG

Storage capacity

Standard 8G (maximum optional 64G)

Playback and deletion of files

Support

Display

OLED 0.5 inches

Contrast ratio

10000:1

Exit pupil distance

26mm

Magnification

12x

Eyepiece resolution

1024× 768

Personnel (1.8m×0.5m)

Detection: 1.5km

Recognition: 0.8km

Vehicle (2.3m×2.3m)

Detection: 3km

Recognition: 1.5km

Video output

PAL/NTSC

External power supply

DC 5V

Maximum current

1A

WIFI

Support

Network hotspot

Support

Power reverse connection

Positive and negative adaptive

Data export

USB 2.0

Satellite positioning

GPS

Working temperature

-45℃～+60℃

Storage temperature

-45℃～+60℃

Working humidity

95% RH MAX( No condensation)

Protection level

IP66

Input voltage

DC2.5V~5V

Power consumption

average power consumption 4W

Impact resistance

military grade

Working time

continuous working time >5 hours

Dimensions (mm)

220 (L) × 85 (W ) × 80 (H)

Net weight

<1.1kg (including battery, hand strap)

Image brightness

Adjustable

Image contrast

Adjustable

Screen brightness

Adjustable

Screen contrast

Adjustable

OSD display parameters

Can be turned on or off
